Window sill edge profile for thermal insulation composite system with window sill and screw-on seal

Edge profiles for window sills in ETICS and plaster systems

The ETICS closure with a higher sliding function

Whether used for external thermal insulation composite systems (ETICS), plaster systems or public buildings with safety and environmental issues: the ecological ETICS closure from BUG with sustainable sliding function can be easily used on any window. The window sill edge profile for thermal insulation composite systems can be installed quickly and easily with pre-assembly or notching for roller shutter guides.

Product overview

Window sill trim A 600 GS/24, standard version, surface finish bright aluminum, alignment left, view inside, projection 110 mm
ETICS closure A 600 GS/24
Window sill edge profile for thermal insulation composite system with integrated roller shutter guide rail right
Window sill edge profile for ETICS with integrated roller shutter guide rail
Window sill edge profile for thermal insulation composite system from the outside
Window sill edge profile for ETICS from the outside with a view of the rounded aluminium profile

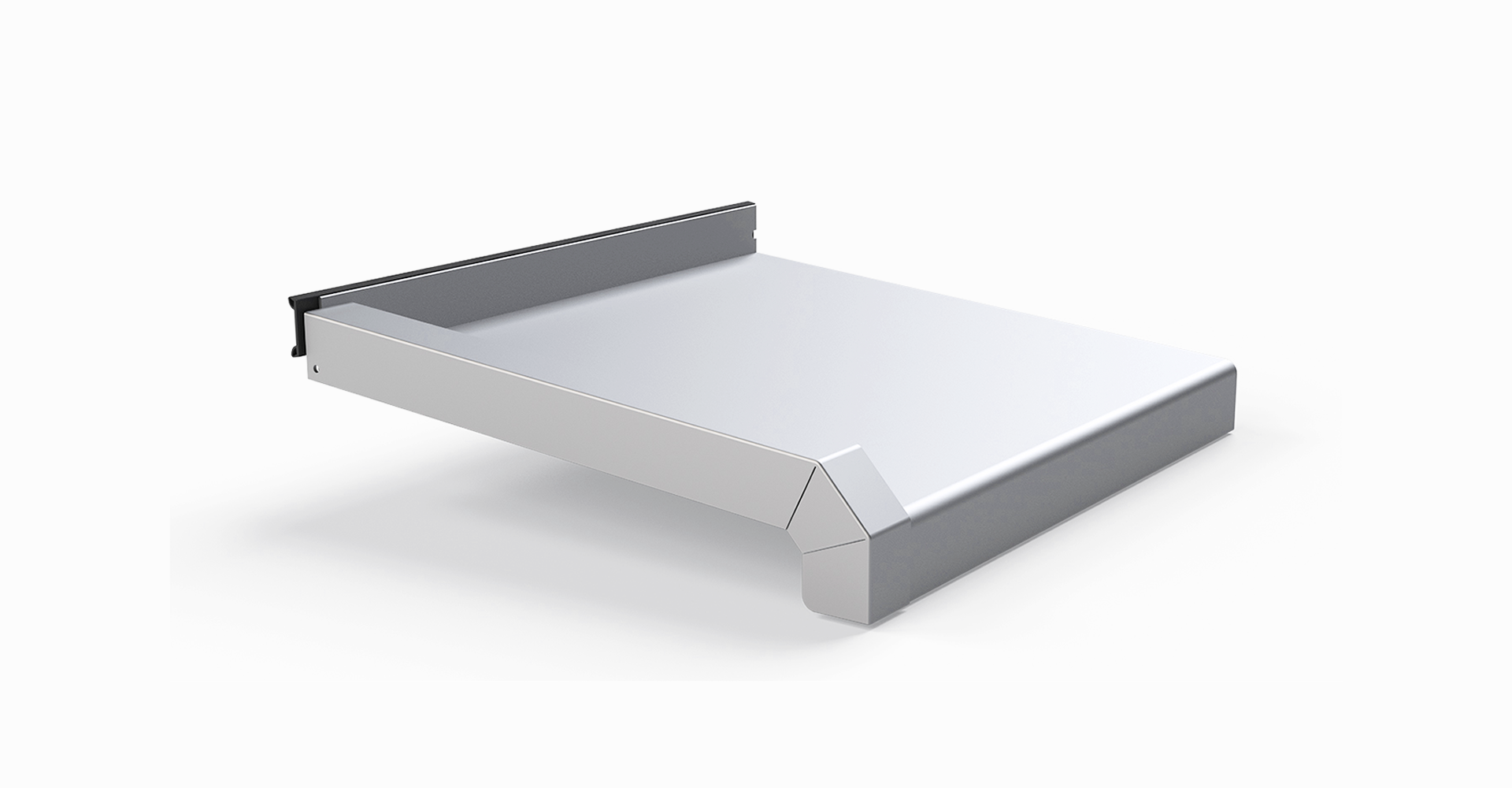

Window sill edge profile for thermal insulation composite system with window sill and screw-on seal
Window sill edge profile for thermal insulation composite system with window sill and screw-on seal
Springs in the aluminium profile of the window sill edge profile for ETICS
Springs in the aluminium profile of the window sill edge profile for ETICS
View of the spring in the aluminium profile of the window sill edge profile for ETICS with integrated roller shutter guide
View of the spring in the aluminium profile of the window sill edge profile for ETICS with integrated roller shutter guide

Refined window sill edge profile with sliding function

The new window sill edge profile A 600 GS from BUG is easy to use and easy to install. The simple plug-in profile means that a quick tap is all it takes to install this aluminium edge profile on the window sill. The base profile and its springs, which are what enable the sliding function, are then clipped on or pushed on. In the following two videos you will find a simulation of the sliding function of the A 600 GS.

Thanks to the compensating springs in the aluminium housing of the base profile, the ever increasing effects of thermal length changes can be reliably absorbed. This makes the A 600 GS the ideal window sill edge profile for thermal insulation composite systems. Uncomplicated assembly and notching can also be implemented with this sustainable aluminium edge profile. Roller shutter guide rails are thus no longer a challenge.

Show YouTube video

A 600 GS – simulation from the front
Show YouTube video

A 600 GS – simulation from above

Essential helper: safety clip for window sill ends with sliding function

Use the practical closure clamps to ensure that installation of the A 600 V is safe and reliable across all trades. The sliding closure is simply attached so that nothing can slip during the construction phase. This means that nothing will stand in the way of the plastering and paint work. Attach and clip on the clamp. Fastening is as easy as using a standard paper clip.

Quick mounting of the safety clip
Show YouTube video

Benefits of ETICS window sill connection A 600 GS

ETICS closure A 600 GS
Your window deserves the best protection – as does your facade and the environment. The window sill edge profile for ETICS offers the ideal conditions to achieve this. Thanks to its sliding function and guaranteed water tightness under heavy rain, your facade is optimally protected from weather-related damage. Meanwhile, the minimal proportion of plastic used ensures sustainability at the highest level.
Safe and simple installation
Tested for water tightness under heavy rain at 1,950 Pa by ift Rosenheim
Option for notching and customisation
Stress-free, decoupled ETICS sliding closure
Enhanced sliding function accommodates changes in length due to thermal expansion
Numerous installation options
Reduced plastic content for environmental protection
Sliding ETICS closure in unique designs
Custom colour options for component parts

Installation of the window sill edge profile for ETICS A 600 Gs

The multi-part, sliding closure A 600 GS is certified for water tightness under heavy rain. Easy notching or shortening is possible thanks to the quick plug-in solution. Simply attach the base profile, spring parts and upper profile – and the ETICS window sill edge with sliding function is ready.

This makes the new window sill edge profile sustainable and ecological

The entire ETICS window sill edge A 600 GS is made of aluminium – only the small spring parts are made of plastic. We are thus offering a new approach to sustainable construction with respect to resource conservation, the use of recycled materials and the expansion of possibilities for the recycling of materials.

At BUG, we are committed to sustainability and the continuous economic cycle of aluminium. The sliding edge profile A 600 GS combines safety, weather protection, design and ecology.

Schematic of the window sill edge profile for thermal insulation composite system from the inside
Schematic of the window sill edge profile for ETICS with integrated roller shutter guide rail from the inside
Schematic of the window sill edge profile for thermal insulation composite system from the outside
Schematic of the window sill edge profile for ETICS with integrated roller shutter guide rail from the outside

The window sill edge profile for ETICS in comparison

Sliding
closure A 500 V/24
Sliding
closure A 500 V/34
ETICS
closure A 600 GS/24
Clinker
end piece A 150
Clinker
end piece A 450
Plaster
closure A 400
Plaster
closure A 700
Drip edge 30 mm
Drip edge 40 mm
Projections from 50 to 390 mm
Projections from 50 to 400 mm
Plaster edge 22 mm
Plaster edge 24 mm
Plaster edge 34 mm
Water tightness under heavy rain to 1,950 Pa
Accommodates length expansion
Decoupled
Notchable
Sliding function
Rigidity
Simple installation
Plaster-flush installation
Available in all RAL colours
Available with Eloxal coating
Suitable for new builds
Suitable for modernisation projects
Suitable for thermal insulation composite systems
Suitable for prefabricated house constructions
Contact
Are you interested in our sustainable BUG window sill sliding closures? Then simply send your enquiry to our window sill experts.
Find out more

New edge profile design for eye-catching and sustainable buildings

Architectural features can be implemented through the unique design of the sliding edge profile A 600 GS. Special constructions such as an Engadine facade are also not a problem. The ETICS window sill edge is therefore particularly suitable for ecological and sustainable structure construction with a focus on ETICS and plaster systems or public buildings that place a high value on safety and sustainability. At the same time, the aluminium housing of the sliding ETICS edge profile with its round design variant can lend your structure a unique look.

With BUG, exceptional design does not mean compromising on safety. The newly developed A 600 GS window sill edge has been tested and verified to be watertight under heavy rain. Thanks to its integrated springs, the sill profile delivers increased safety by absorbing the temperature expansion of the window sill.

This window sill edge thus fits seamlessly into the range of high-quality edge profiles for sliding closures. It also optimises the plaster connector and the clinker end piece.

Front view of ETICS window sill edge, Engadine reveal
A 600 GS
Special construction “Engadine reveal”
Inside view of ETICS window sill edge, Engadine reveal
A 600 GS
Special construction “Engadine reveal”
A 600 GS
Detailed section A 600 GS with roller shutter guide

Can be easily and safely combined in the system

The extensive range of accessories in the area of ​​window sill systems from BUG makes installation easier in various installation situations. The sustainable and sliding edge profile A 600 GS can be combined with practical accessories such as

FAQs about window sill edge profiles for thermal insulation composite systems

Would you like to find out more about the sliding and sustainable window sill edge profiles for thermal insulation composite systems? You will find answers below and on our page with our frequently asked questions about window sill systems.

With thermal insulation composite systems, the connection of components such as the window sill must be look at and planned carefully, as this directly affects the longevity and long-term functionality of the facade. For this reason, the components used must work in perfect harmony, both internally and when used in combination. The window sill edge profile must form a structurally and technically seamless unit within the thermal insulation composite system in order to ensure long-term and secure watertightness and to reliably compensate for thermal length changes. Using a solution like System 500, where all components already work in perfect synergy, makes the challenge of implementing thermal insulation composite systems one that can be easily overcome across all the various trades.

For thermal insulation composite systems and all other types of facade, sealing the window sill edge profile requires a suitable window sill system where all components are designed to complement one another. In the case of the A 600 GS window sill edge, the DFT 31 shaped gasket piece provides the watertightness under heavy rain. When a roller shutter guide has been integrated, the focus is always on the trade hole. This must be sealed in a manner that guarantees complete water tightness in all rain conditions. A second level of sealing is also recommended. You can use the screw-on seal from BUG to seal the back of the window sill to the window frame.
