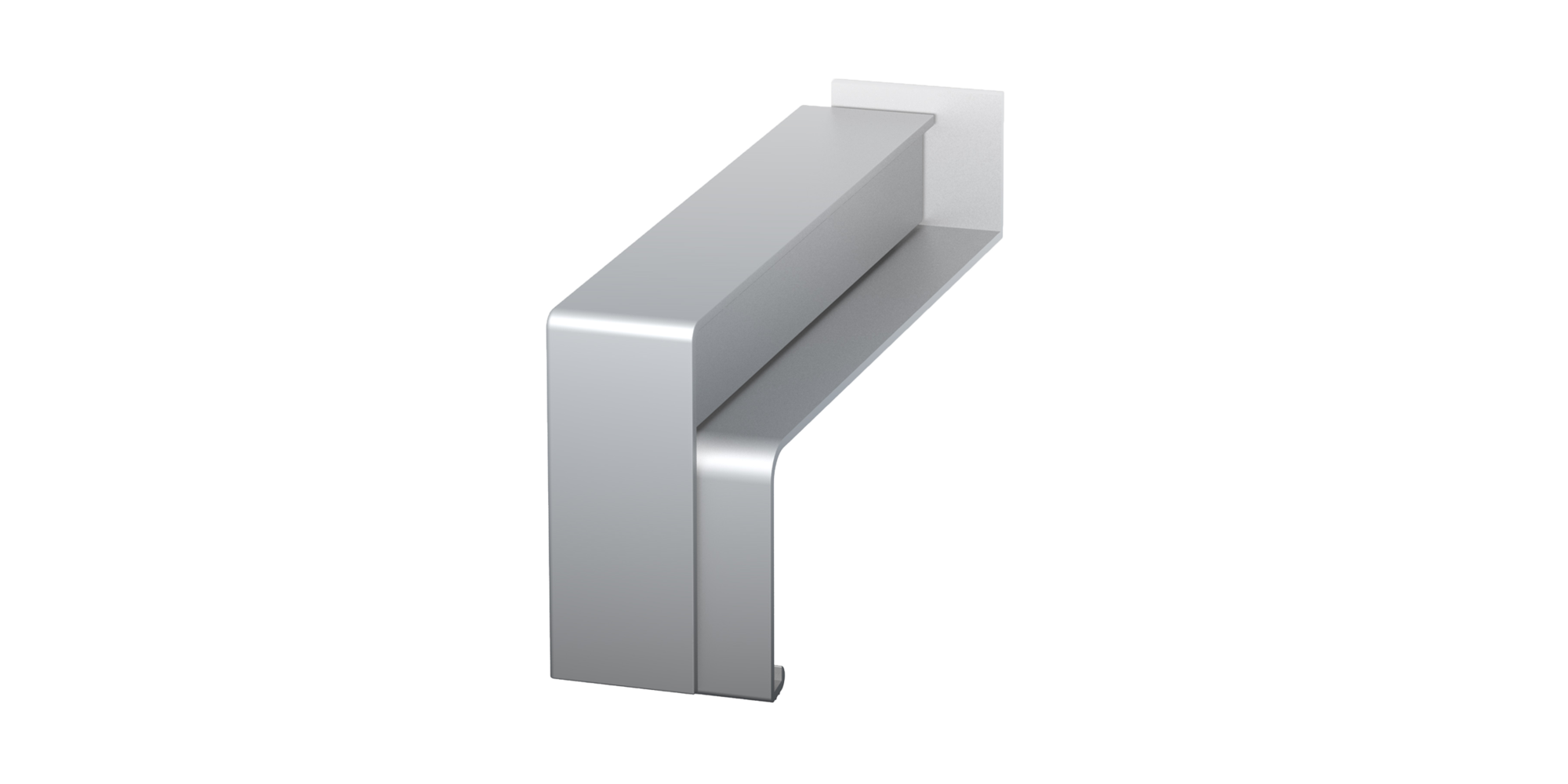

Plaster edge 24 mm of the A 500 V

The sliding closure for window sills from BUG

Decoupled, easy to process, safe to use

Whether used for new builds, renovations or thermal insulation composite systems, the window sill sliding closures from BUG are suitable for any building material on the window. Installation is quick, easy and in RAL compliance with the window sill.

Product overview

Sliding closure A 500 V/24, standard version, surface bare aluminum, alignment left, view inside, projection 110 mm
Sliding closure A 500 V/24

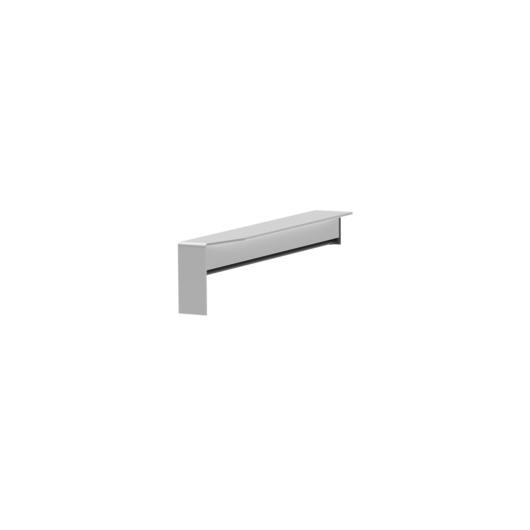

Sliding closure A 500 V/34

Why a sliding end piece should be used for window sills – the A 500 V simply explained

Show YouTube video

A 500 V – explained for dealers
Show YouTube video

A 500 V – explained for installers
Show YouTube video

A 500 V – explained for architects & designers

The decoupled window sill sliding closure A 500 V

The benefits of using a decoupled sliding closure profile such as the A 500 V are two-fold: they bring advantages prior to and during installation on site and after installation thanks to certified safety.

Quick and easy installation

The sliding closures are available in two different external widths to match the aluminium window sills: 24 mm und 34 mm. Using a standard circular saw, make the saw cut on the sliding profile of the edge piece on site for the roller shutter guide rails, then push the sliding profile back onto the EPDM plug-in profile. You can then install the sliding closure directly on the window sill.

Long-lasting protection for the facade

The window sill sliding closure cab be simply integrated into an ETICS facade. A specific drainage channel in the plug-in profile ensures controlled water drainage and thus offers long-term protection for the plaster or ETICS facade. The built-in A 500 V sliding closure safely absorbs the expansion of the window sill when it is hot.

Plaster edge 24 mm of the A 500 V
A 500 V
Plaster edge 24 mm
Plaster edge 34 mm of the A 500 V
A 500 V
Plaster edge 34 mm
Detailed view of the clamping profile and aluminium housing
A 500 V
Detailed section shows the clamping profile and aluminium housing
Sliding closure with window sill
A 500 V
Aluminium window sill fitted with sliding closures
Sliding closure with window sill and notch
A 500 V
With notches for roller shutter guide rails
External window sill, water tightness under heavy rain up to 1,950 Pa
System 500
Window sill system with sliding closure A 500 V and butt connector H 500 D
Sliding closure A 500 V
The A 500 V sliding closure from BUG combines safety, weather protection, design and ecology. All advantages at a glance:
Quick and easy installation
Tested for water tightness under heavy rain at 1,950 Pa by ift Rosenheim
No dirt traps due to closed design
Reliably absorbs changes in the length of the window sill caused by temperature fluctuations
No need for complex notching of the edge profile
Special clamping socket holds and centres the sliding closure
Compatible with all available guide rails
Roller shutter guide rail next to the sliding profile
Roller shutter guide rail next to the sliding profile
Notched or moulded sliding closure for the roller shutter guide rail with a defined distance to the window sill screw-on bar
Notched or edged sliding closure for the roller shutter guide rail with a defined distance to the window sill screw-on bar
Sawn-off sliding closure profile for the roller shutter guide rail with a defined distance to the window sill screw-on bar
Sawn-off sliding end profile for the roller shutter guide rail with a defined distance to the window sill screw-on bar

Essential helper: safety clip for window sill sliding closure

Use the practical closure clamps to ensure that installation of the A 500 V is safe and reliable across all trades. The sliding closure is simply attached so that nothing can slip during the construction phase. This means that nothing will stand in the way of the plastering and paint work. Attach and clip on the clamp. Fastening is as easy as using a standard paper clip.

Quick mounting of the safety clip
Show YouTube video

Simple functionality of the window sill sliding closure

You do not need any special tools to install the sliding end piece on the window sill. Thanks to the simple plug-in system, only a few steps are required to attach the BUG A 500 V to the window sill.

The window sill sliding closure A 500 V in comparison

Sliding
closure A 500 V/24
Sliding
closure A 500 V/34
ETICS
closure A 600 GS/24
Clinker
end piece A 150
Clinker
end piece A 450
Plaster
closure A 400
Plaster
closure A 700
Drip edge 30 mm
Drip edge 40 mm
Projections from 50 to 390 mm
Projections from 50 to 400 mm
Plaster edge 22 mm
Plaster edge 24 mm
Plaster edge 34 mm
Water tightness under heavy rain to 1,950 Pa
Accommodates length expansion
Decoupled
Notchable
Sliding function
Rigidity
Simple installation
Plaster-flush installation
Available in all RAL colours
Available with Eloxal coating
Suitable for new builds
Suitable for modernisation projects
Suitable for thermal insulation composite systems
Suitable for prefabricated house constructions
Contact
Are you interested in our BUG window sill sliding closures? Then simply send your enquiry to our window sill experts.
Find out more
Simple attachment of BUG sliding closure A 500 V
Show YouTube video

BUG window sill sliding closures in individual colours

The sliding end pieces are available in all colour variants – thermal paints are used to provide colour to surfaces (all standard RAL colours are available) or they can be coated using anodising technology. Our aluminium sliding closures in particular can thus be perfectly adapted to the facade. For transport and subsequent installation, the surface-refined window sills are optimally protected with a factory-applied film.

Practical accessories

The extensive range of accessories for aluminium window sills makes installation easier in various installation situations. The sliding closures can be combined with the H 500 D BUG window sill butt connector, which is watertight in heavy rain, and with the internal and external corner connectors I 500 D and A 500 D, each for a 90° and 135° corner.

Safe access

The BUG sill deck is also compatible with the window sill sliding closures; the deep grooves provide additional grip when stepping on the window sill, which is particularly important in wet and frosty conditions.

Tested and certified system

Safety, weather protection and design are the best reasons for installing window sill components as an all-in-one system. With the window sill system 500 from BUG, you get maximum flexibility for different window dimensions and building materials and you simultaneously benefit from a simple system that is easy to install.

The most important questions about window sill sliding closures

Would you like to find out more about sliding closure profiles? You can find detailed answers in our FAQs about window sill systems.

Yes, the window sill sliding closures from BUG are tested for water tightness under heavy rain. An additional advantage is that they also compensate for thermal expansion. It is crucial that the sliding closures are installed according to the instructions.

The successful use of ETICS systems requires the decoupling of neighbouring components. For this reason, only sliding closures are suitable for window sills, as they absorb all movements, even when there are temperature fluctuations or wind, so that the facade is never affected.
