Window sill plaster connector from BUG
Window sill end pieces in various designs
Product overview
Aluminium plaster connectors at a glance
Benefits of window sill edges
There are many reasons why installers such as builders, dealers and architects choose standard plaster connectors. At BUG, you get high quality and a wide range of choices. The two window sill connection profiles A 400 and A 700
- are suitable for prefabricated house constructions,
- are available in all RAL colours
- or with Eloxal coating, and
- enable easy, flush-to-plaster installation
Find the right window sill edge
There is a suitable edge profile for every window sill and every requirement. If you decide on a plaster connector, at BUG you can choose between our standard and Softline Plus lines.
Sliding closure A 500 V/24 |
Sliding closure A 500 V/34 |
ETICS closure A 600 GS/24 |
Clinker end piece A 150 |
Clinker end piece A 450 |

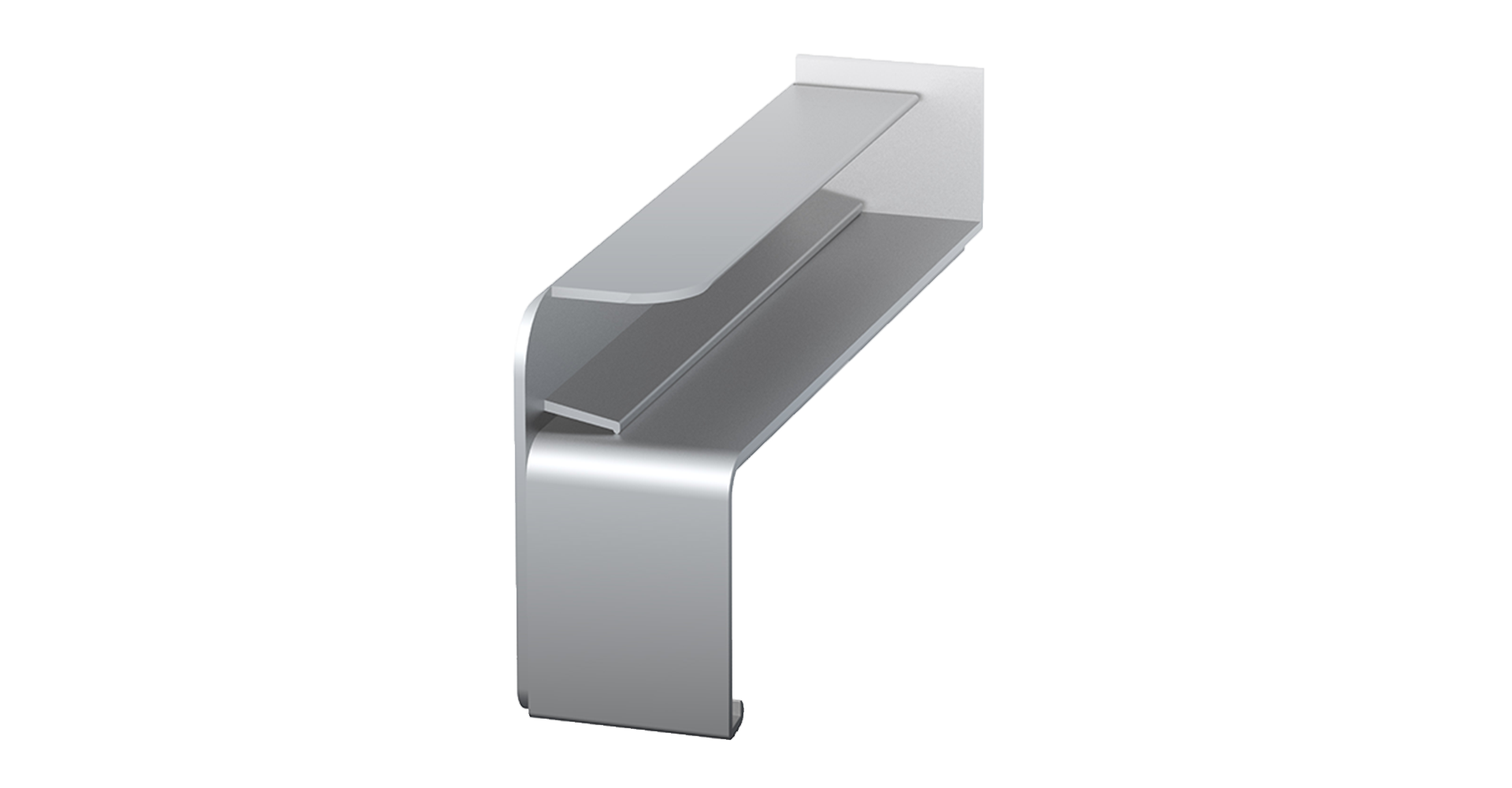

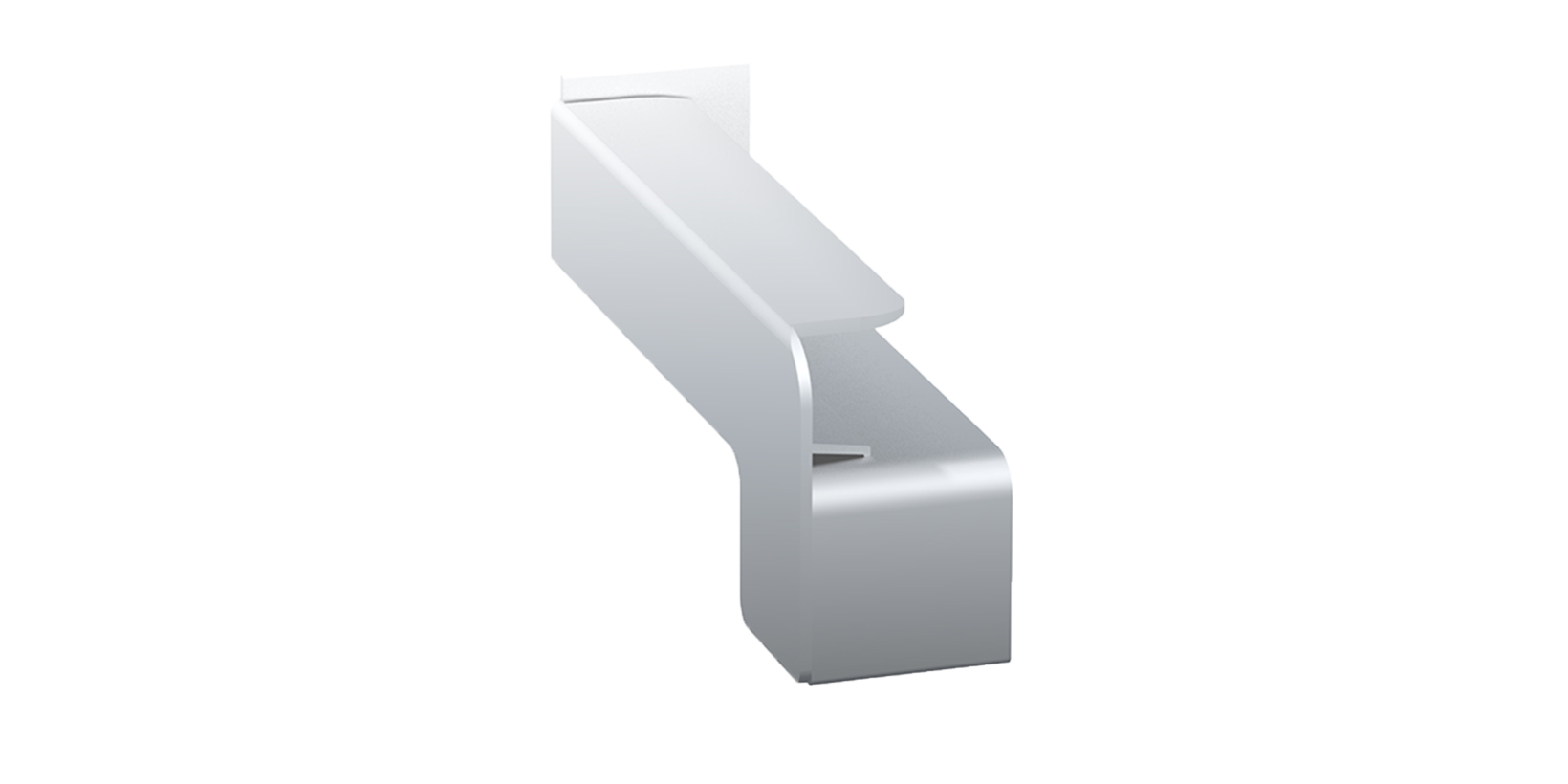

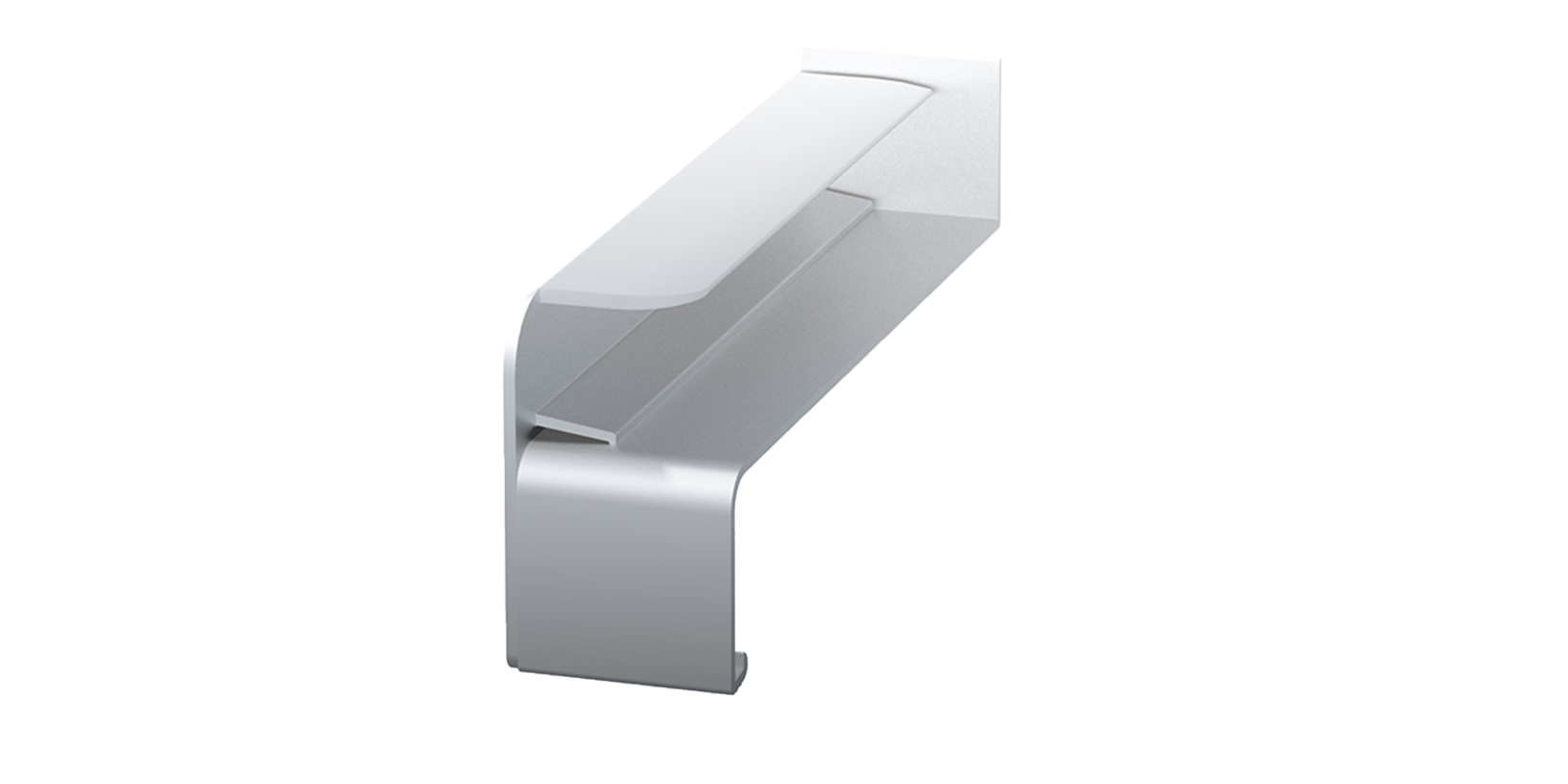

Plaster closure A 400 |

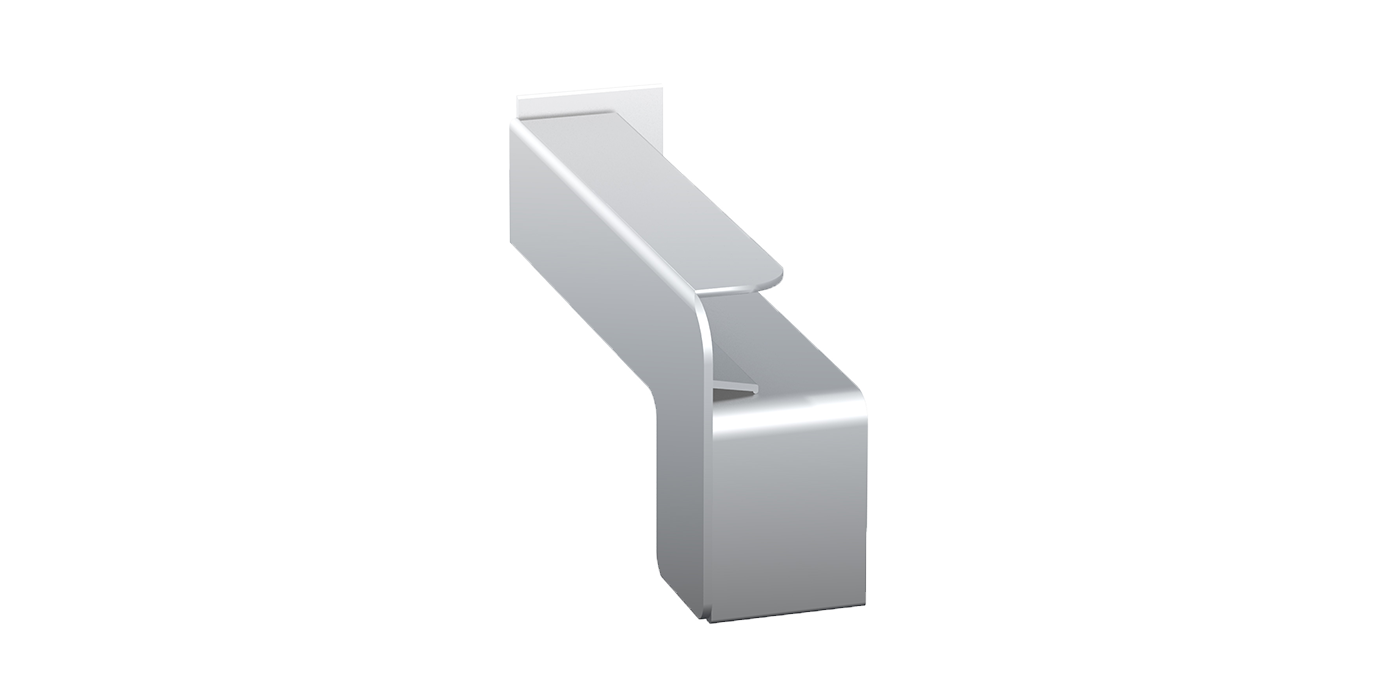

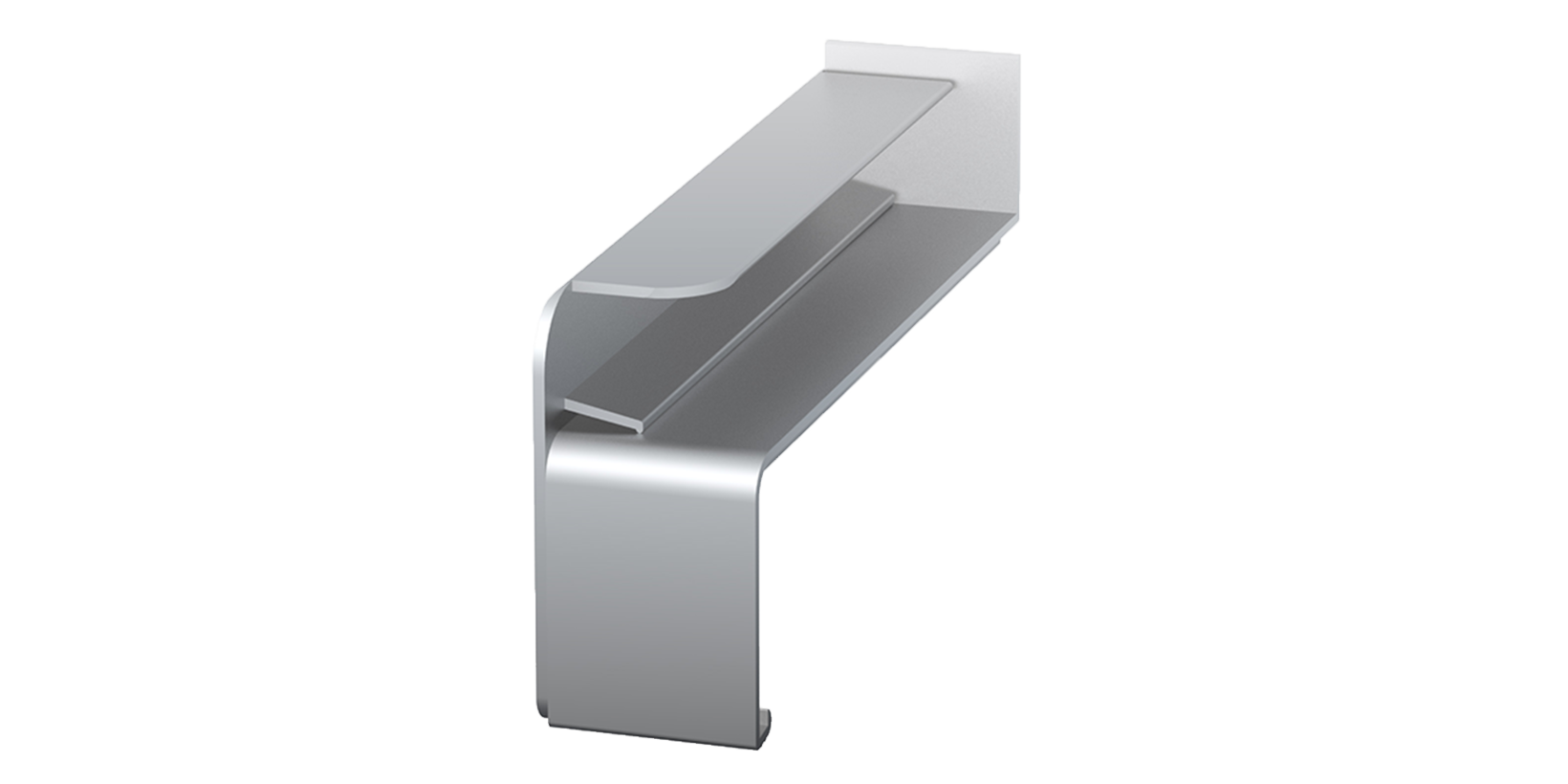

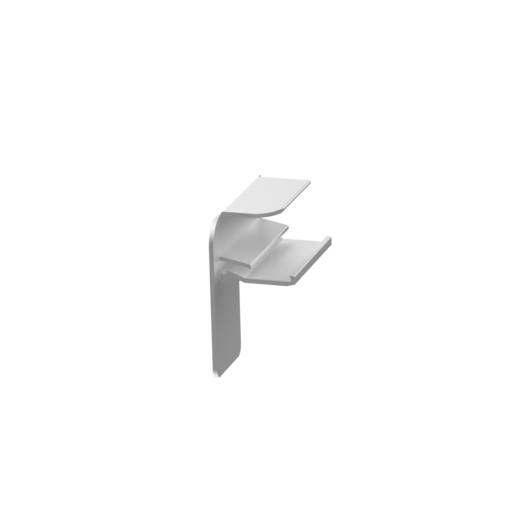

Plaster closure A 700 |
|
---|---|---|---|---|---|---|---|
Drip edge 30 mm |
|
|
|
|
|
|
|
Drip edge 40 mm |
|
|
|
|
|
|
|
Projections from 50 to 390 mm |
|
|
|
|
|
|
|
Projections from 50 to 400 mm |
|
|
|
|
|
|
|
Plaster edge 22 mm |
|
|
|
|
|
|
|
Plaster edge 24 mm |
|
|
|
|
|
|
|
Plaster edge 34 mm |
|
|
|
|
|
|
|
Water tightness under heavy rain to 1,950 Pa |
|
|
|
|
|
|
|
Accommodates length expansion |
|
|
|
|
|
|
|
Decoupled |
|
|
|
|
|
|
|
Notchable |
|
|
|
|
|
|
|
Sliding function |
|
|
|
|
|
|
|
Rigidity |
|
|
|
|
|
|
|
Simple installation |
|
|
|
|
|
|
|
Plaster-flush installation |
|
|
|
|
|
|
|
Available in all RAL colours |
|
|
|
|
|
|
|
Available with Eloxal coating |
|
|
|
|
|
|
|
Suitable for new builds |
|
|
|
|
|
|
|
Suitable for modernisation projects |
|
|
|
|
|
|
|
Suitable for thermal insulation composite systems |
|
|
|
|
|
|
|
Suitable for prefabricated house constructions |
|
|
|
|
|
|
|
Installation of window sill end pieces
The general guidelines and standards for window sill end pieces apply to the installation of BUG plaster connectors on window sills. If plaster closures are not watertight under heavy rain, a second level of sealing is essential. Proper installation is essential to achieve water tightness under heavy rain.
Both plaster connectors can be notched out, for example, to integrate roller shutter guide rails. In this case, pre-assembly is necessary. When installing, ensure a deduction measurement of 2 millimetres per side.
The most important questions about window sill plaster connectors
Would you like to find out more about window sill edges? Learn more in the answers below or on our FAQ page about window sill systems.
Yes, the window sill end pieces from BUG are tested for water tightness under heavy rain. The aluminium plaster connectors A 400 and A 700 are tested for water tightness under heavy rain to 1,950 Pascal when installed correctly and only in combination with the DFT 40 shaped gasket piece.
Whether to choose a window sill plaster connector or a sliding closure depends on the facade and on your individual preferences. For an ETICS facade, you should definitely use a sliding end piece to avoid damage to the facade, as the sliding function compensates for the thermal length expansion. However, both types of closure profile can be notched out, can be installed easily and flush with the plaster and are thus highly suitable for plaster facades. For ETICS facades, we recommend using sliding window sill end pieces such as the sliding closure A 500 V.
The A 400 and A 700 can be combined with other window sill components from BUG:
