Vienna windows
Wood-aluminium systems for Viennese sash bar windows and traditional Viennese box-type windows
Product overview
Fit Vienna windows with wood protection

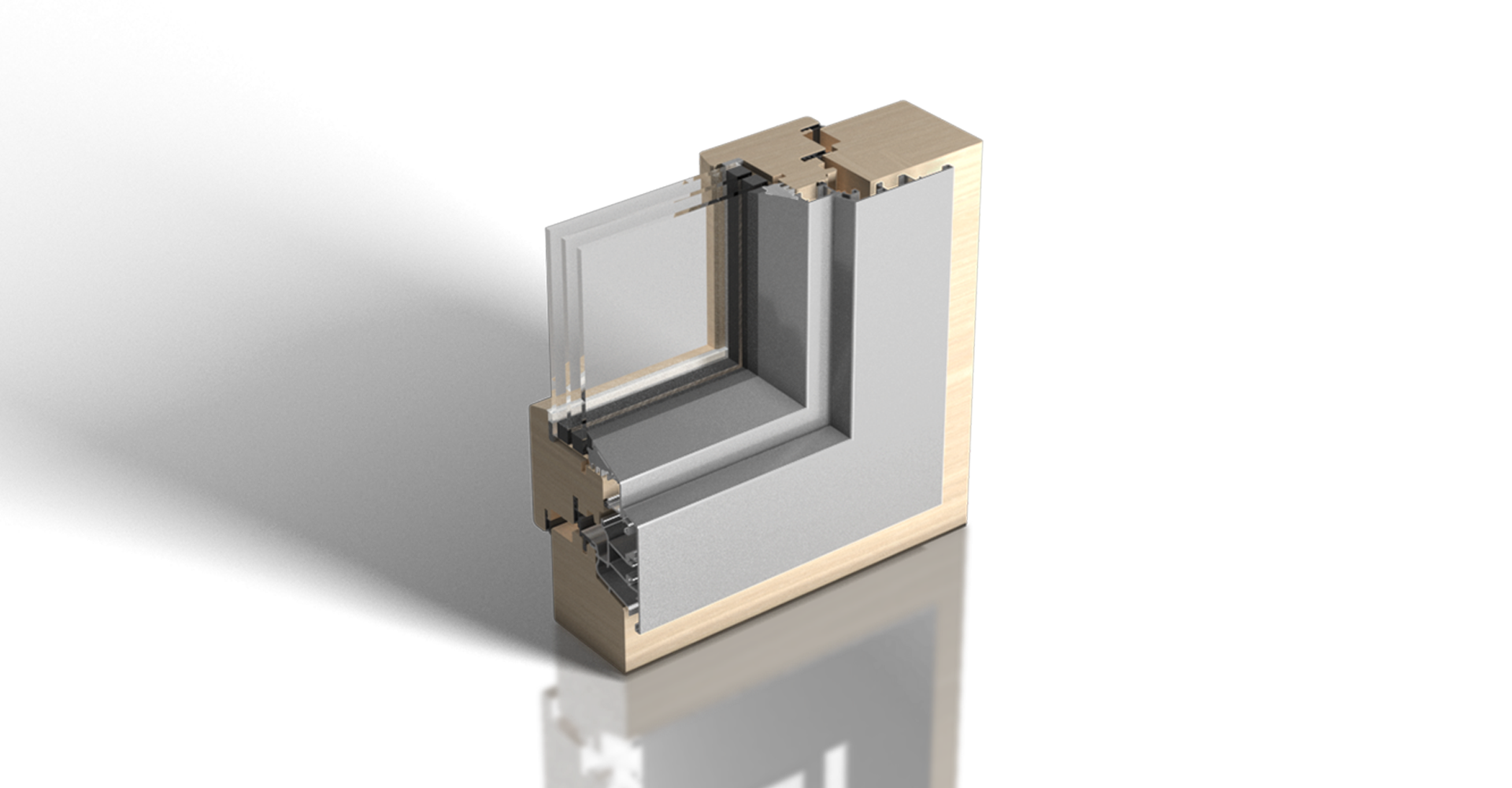

The BUG system solution for Old Vienna box-type windows and sash bar windows is ideal for structures and buildings with listed status. It has been developed for the Austrian market, specifically for the City of Vienna and the contractual provisions of WW-SD1890. The prefabricated aluminium frame is attached to the existing timber frame using a clip connection.

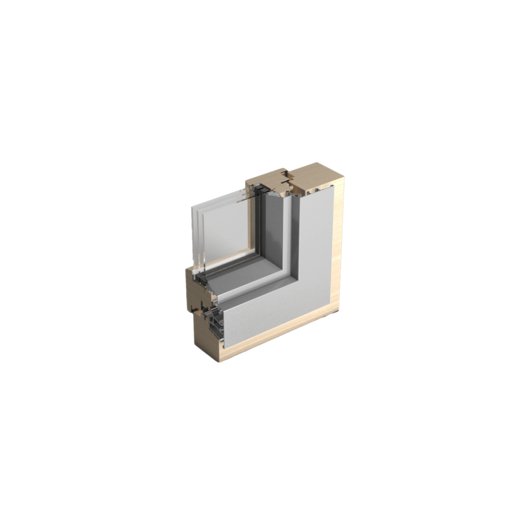

Benefits of BUG Design AWF 2 Vienna windows:
Combine traditional window craftsmanship with modern window technology. The result: an aesthetic and refined facade with the highest insulation standards.
- Clip connection provides advanced wood protection
- Use of large-volume weather bars possible
- Old Vienna windows tested for air permeability class 4
- Certified water tightness under heavy rain (class E 900)
- Designed for wet glazing
- Frame connections available in welded and mechanical versions
- Fast and easy installation
Technical features
- inclined
Flush system
- RAL according to card
- Anodised coating
- Wood decor coating
- Welded corner connectors for lasting corrosion protection (no visible joints)
- Mechanical corner connectors

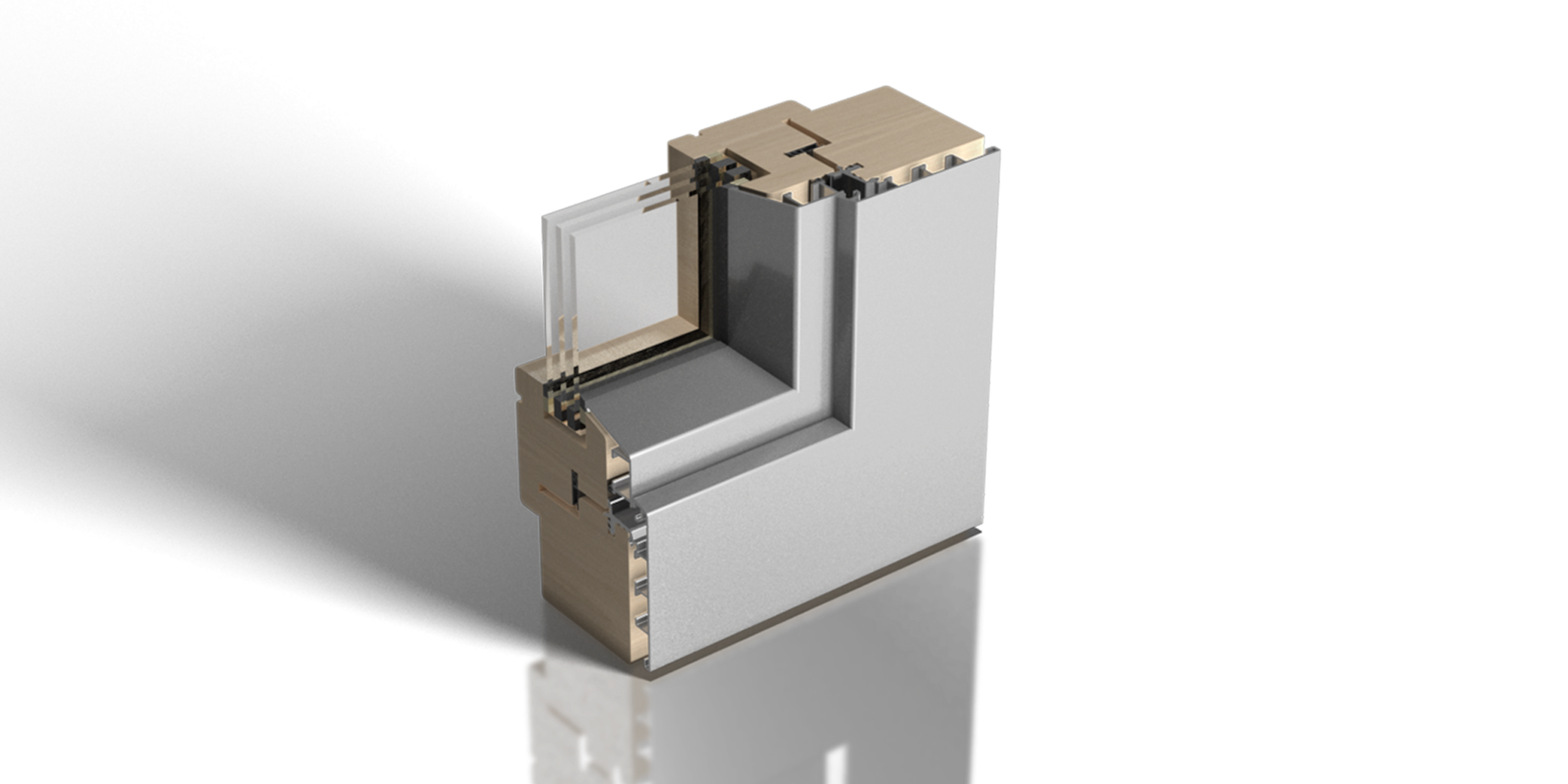

Assembly of aluminium profiles for Vienna windows
The prefabricated aluminium frame is attached to the existing wooden frame using a clip connection. Attachment is carried out using either
- profile brackets,
- Clipfix,
- Profix or
- rotary brackets.
These enable expansion compensation in all directions. Standardised building connection solutions also make installation quick, practical and easy.
Old Vienna sash bar windows and box-type windows that ensure water tightness under heavy rain

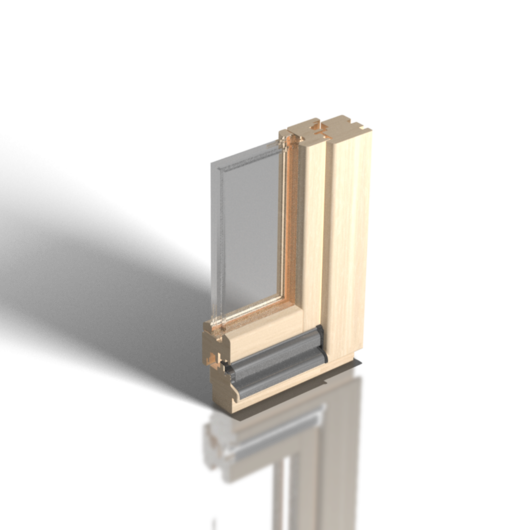

Weather bars with varying volumes ensure high water tightness under heavy rain and optimal wood protection for the window frames. A full range of glazing types is available.
In addition, the BUG Design AWF 2 window system solution reduces excessive heating costs. They prevent overheating in strong sunlight and protect living spaces from disturbing environmental and road noise.
The wooden window is permanently protected by the coated aluminium frame profiles. Modern technology ensures that water is drained away on the external surfaces and does not penetrate the building structure or construction and cause structural damage.
Vienna windows in listed buildings are fitted with thermally insulated aluminium weather bars with moulded plastic bars and plastic stop. This ensures that all forces acting on the window construction are absorbed within the permitted deflection. This prevents plaster and wood damage to the window.
Windows and doors are usually double or triple glazed. In addition, the thermally broken aluminium profiles of BUG wood-aluminium systems provide high levels of thermal insulation and soundproofing.
The City of Vienna’s contract provision WW-SD1890 regulates all general provisions in a summarised performance specification for windows and window doors made of wood-aluminium. With BUG systems, it is possible to implement the regulations for aluminium facing shells:
- Corner connectors can be butt-welded and form-fit with aluminium fasteners, or mechanically and adhesively joined.
- The corner connectors are concealed and do not damage the wood.
- Linear thermal expansion can be considered and planned for.
- Visible or weathered outer edges are rounded with a radius of at least 2.5 mm.
- Surfaces are smooth, without material defects, colour variations or damage.
- Cutting and machining areas are burr-free.
- The aluminium sash profiles are bevelled to 30°.
- Aluminium cover profiles of the frame construction have a bevel of 15° and a depth of 14 mm to 16 mm.
- Matching end caps close the system.
Historical buildings systems with modern technology – custom-fit profiles for Vienna windows
Anyone looking to renovate windows in Vienna must comply with local regulations. At BUG we meet all the requirements for historic windows. Our aluminium structures have been designed specifically for the Austrian market and the City of Vienna. We are happy to advise on individual requirements. Simply complete the contact form and our team of experts will contact you.
