Sliding closure A 500 V/34 Item Number: 56014840

The decoupled sliding closure

Decoupled, two-part sliding closure A 500 V/34 for plaster and ETICS facades with compensation of thermal length variation…
View product description

Selection number	208287 999 01
Length	34
Width	400 mm
Height	25.5 mm
Projection	400 mm
Height Drip Edge	40 mm
Height Screw Plate	25 mm
deduction measurement	5.6 mm

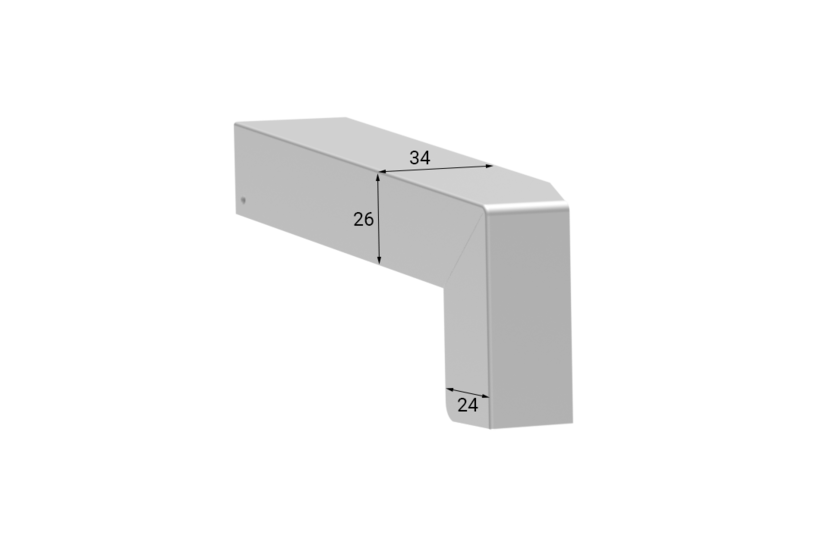

plaster edge	34 mm
Orientation	Left
Material Thickness	1.8 mm
Packaging Unit	30 Stk

Matching products

Window sill Softline Plus

Decoupled, two-part sliding closure A 500 V/34 for plaster and ETICS facades with compensation of thermal length variation of +2 mm/-2 mm. Provision for integration of a roller shutter guide rail. Water tightness under heavy rain tested up to 1,950 Pa. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: aluminium and special plastic. Plaster edge (width): 34 mm. Drip edge: 40 mm.
