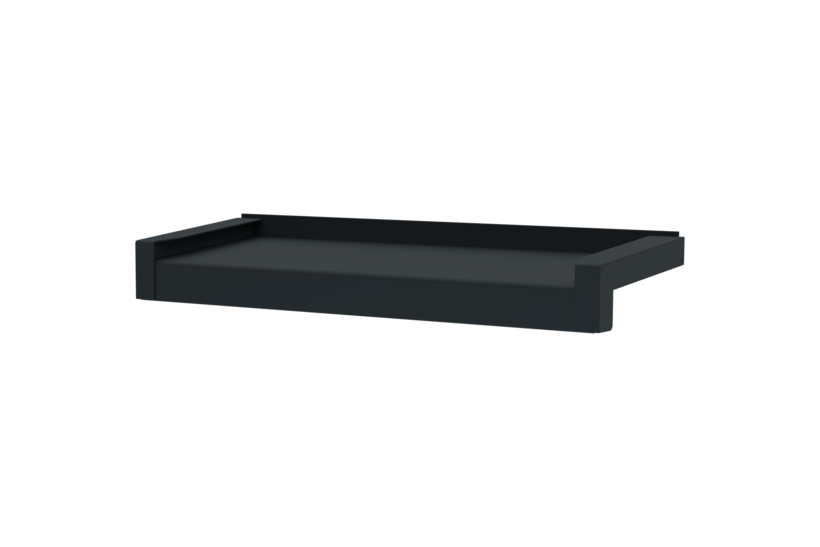

Sliding closure A 500 V/34 Item Number: 56014792

The decoupled sliding closure

Decoupled, two-part sliding closure A 500 V/34 for plaster and ETICS facades with compensation of thermal length variation…
View product description

Selection number	208261 716 01
Length	34
Width	165 mm
Height	25.5 mm
Projection	165 mm
Height Drip Edge	40 mm
Height Screw Plate	25 mm
deduction measurement	5.6 mm
plaster edge	34 mm
Orientation	Left
Coating standards	Powder coating according to GSB AL 631/Qualicoat
Material Thickness	1.8 mm
Color	RAL 7016
Packaging Unit	30 Stk

Matching products

Window sill Softline Plus

Decoupled, two-part sliding closure A 500 V/34 for plaster and ETICS facades with compensation of thermal length variation of +2 mm/-2 mm. Provision for integration of a roller shutter guide rail. Water tightness under heavy rain tested up to 1,950 Pa. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: aluminium and special plastic. Plaster edge (width): 34 mm. Drip edge: 40 mm.
