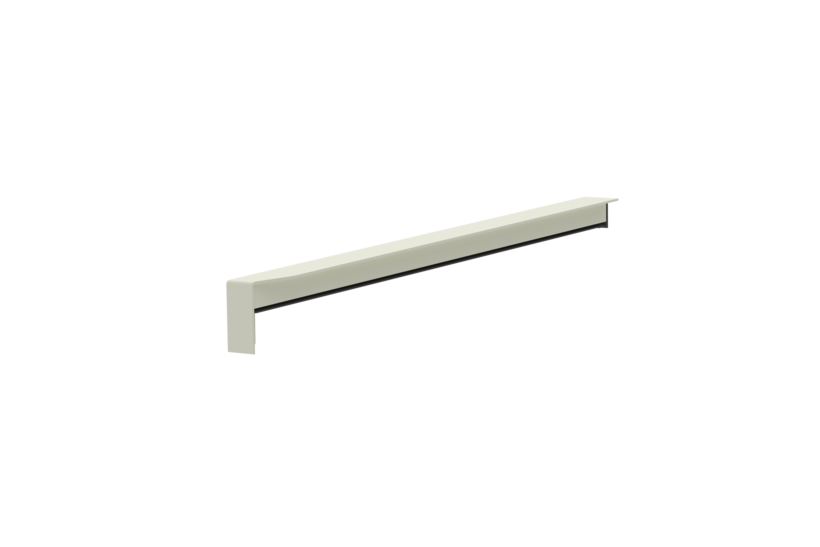

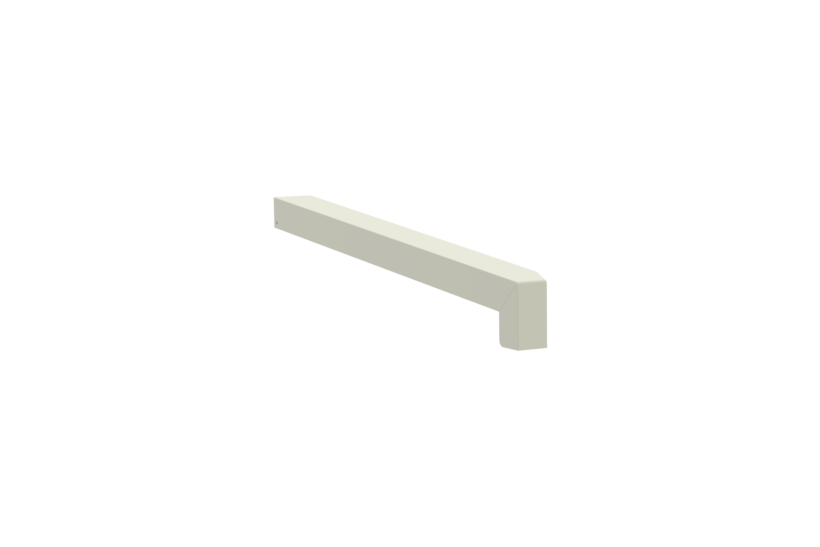

Sliding closure A 500 V/34 Item Number: 56008888

The decoupled sliding closure

Decoupled, two-part sliding closure A 500 V/34 for plaster and ETICS facades with compensation of thermal length variation…
View product description

Selection number	202283 931 01
Length	34 mm
Width	390 mm
Height	25.5 mm
Projection	390 mm
Height Drip Edge	30 mm
Height Screw Plate	25 mm
deduction measurement	5.6 mm
plaster edge	34 mm
Orientation	Left
Coating standards	Powder coating according to GSB AL 631/Qualicoat
Material Thickness	1.8 mm
Color	RAL 9016
Packaging Unit	30 Stk

Matching products

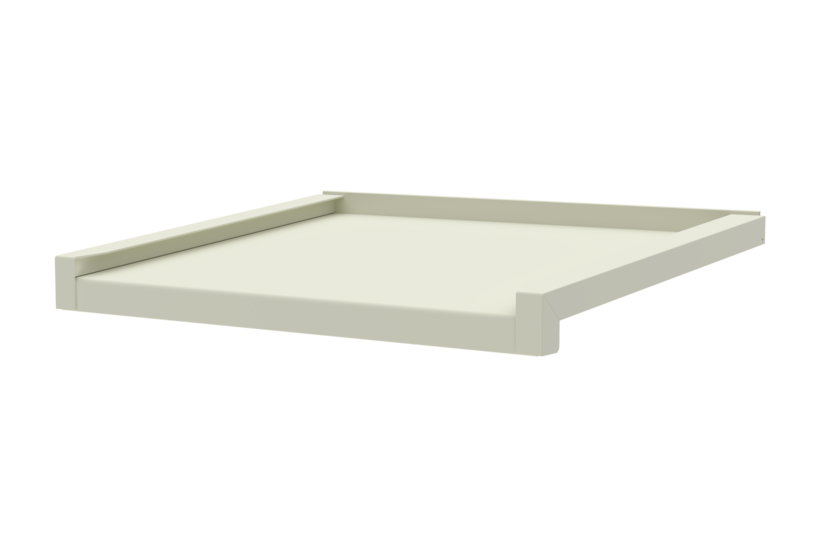

Window sill Standard

Decoupled, two-part sliding closure A 500 V/34 for plaster and ETICS facades with compensation of thermal length variation of +2 mm/-2 mm. Provision for integration of a roller shutter guide rail. Water tightness under heavy rain tested up to 1,950 Pa. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: aluminium and special plastic. Plaster edge (width): 34 mm. Drip edge: 30 mm.
