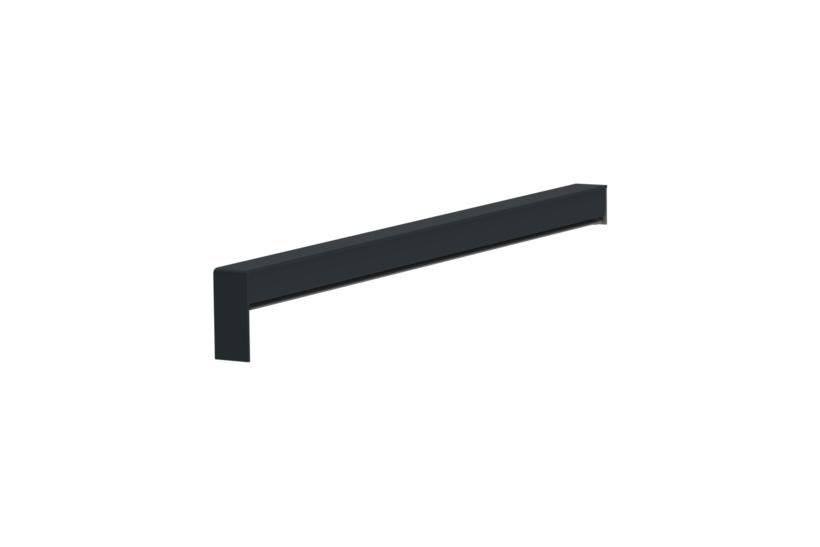

Sliding closure A 500 V/24, standard version, surface RAL 7016, alignment right, external view, projection 310 mm

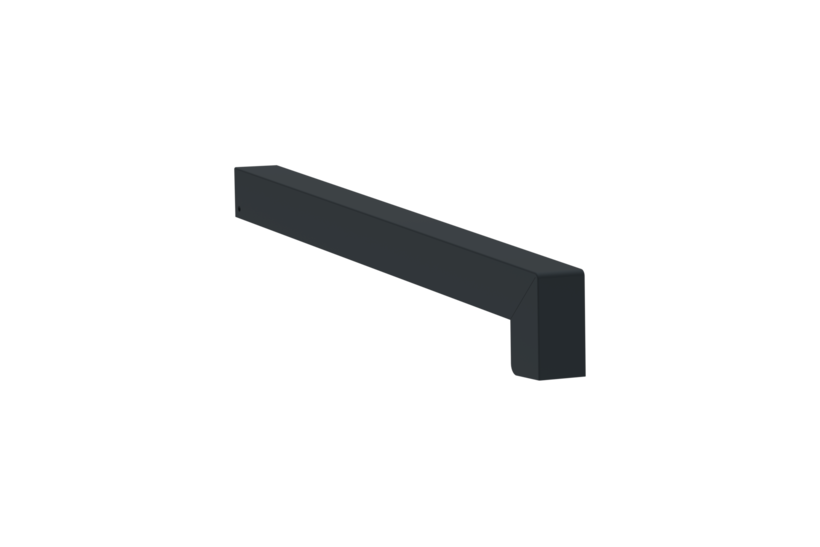

Sliding closure A 500 V/24, standard version, surface RAL 7016, alignment left, external view, projection 310 mm

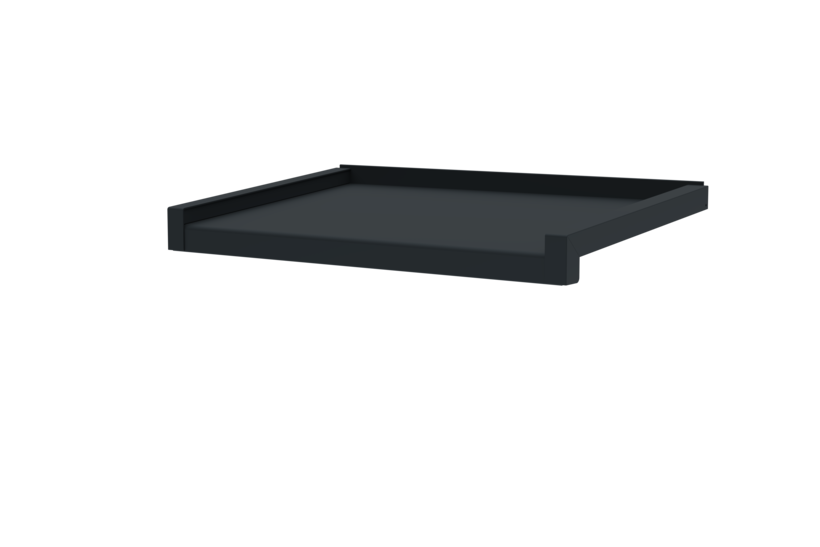

Window sill, standard version, including sliding closure, surface RAL 7016 projection 310 m
Sliding closure A 500 V/24, standard version, surface RAL 7016, alignment right, external view, projection 310 mm
Sliding closure A 500 V/24, standard version, surface RAL 7016, alignment left, external view, projection 310 mm
Window sill, standard version, including sliding closure, surface RAL 7016 projection 310 m

Sliding closure A 500 V/24 Item Number: 56008704

The decoupled sliding closure
Decoupled, two-part sliding closure A 500 V/24 for plaster and ETICS facades with compensation of thermal length variation…
View product description
Selection number 202225 777 01
Length 24 mm
Width 310 mm
Height 25.5 mm
Projection 310 mm
Height Drip Edge 30 mm
Height Screw Plate 25 mm
deduction measurement 5.6 mm
plaster edge 24 mm
Orientation Left
Coating standards Powder coating according to GSB AL 631/Qualicoat
Material Thickness 1.8 mm
Color RAL 7016
Highly weather resistant Yes
Packaging Unit 30 Stk

Matching products

Window sill Standard

Decoupled, two-part sliding closure A 500 V/24 for plaster and ETICS facades with compensation of thermal length variation of +2 mm/-2 mm. Provision for integration of a roller shutter guide rail. Water tightness under heavy rain tested up to 1,950 Pa. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: aluminium and special plastic. Plaster edge (width): 24 mm. Drip edge: 30 mm.

Quick and easy installation
Tested for water tightness under heavy rain at 1,950 Pa by ift Rosenheim
No dirt traps due to closed design
Reliably absorbs changes in the length of the window sill caused by temperature fluctuations
No need for complex notching of the edge profile
Special clamping socket holds and centres the sliding closure
Compatible with all available guide rails

Complementary products

Safety clip for window sill ends from BUG
Safety clip
Downloads
Broschure: Window sill Standard and accessories
en
pdf | 3 MB
Prüfzeugnis: Gleitabschluss A 500 V
de
pdf | 193 KB
Prüfzeugnis: Gleitabschluss A 500 V mit Anschraubdichtung AD 500 und Stoßverbinder H 500 D
de
pdf | 122 KB
