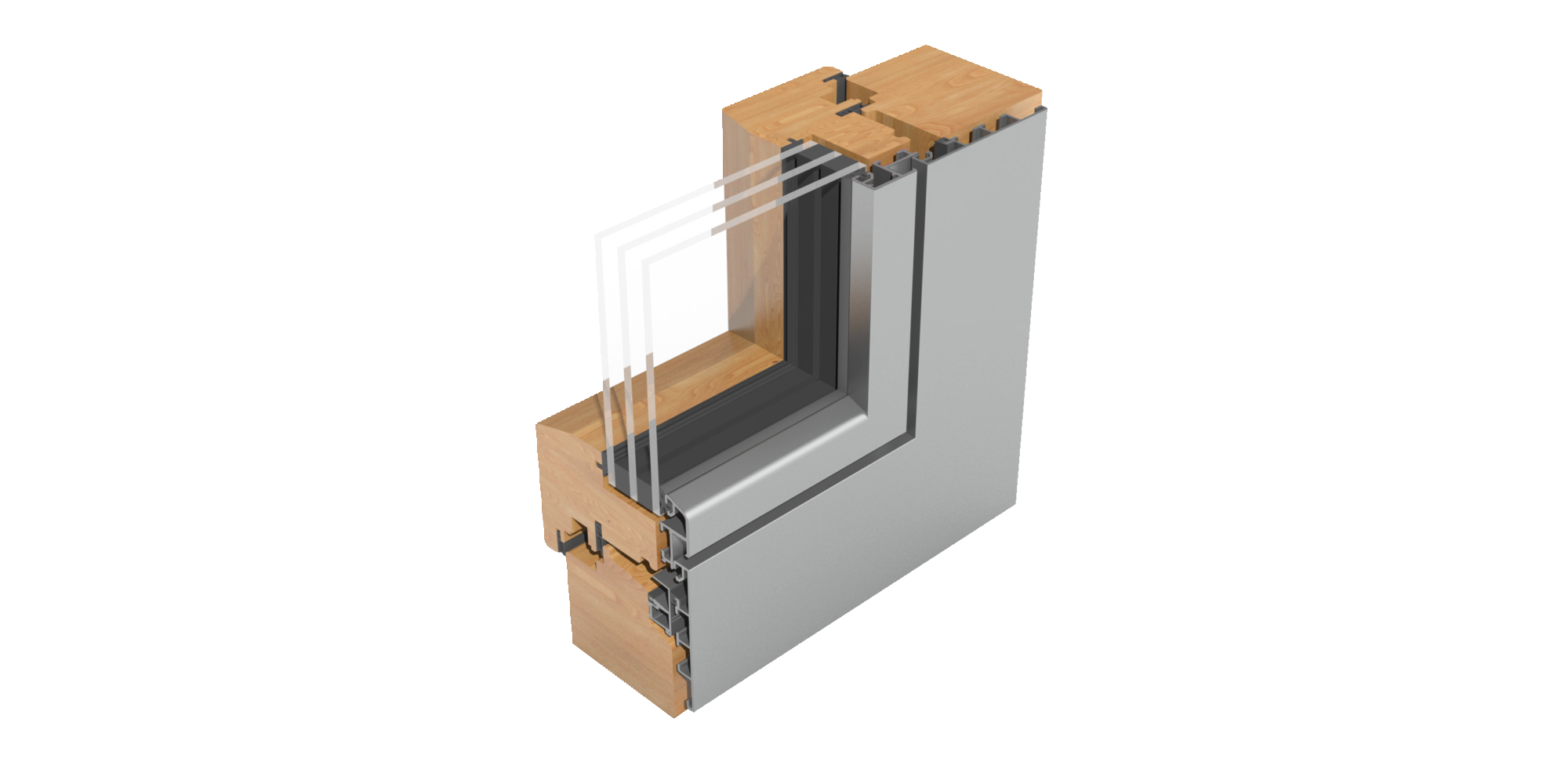

Triangle – system component for wood-aluminium window systems
Improve water drainage at the sash frame
Product overview
Slimline profile component with a big impact
The profile element enables a combination of angular and sloped or rounded profile systems. This creates a unique appearance. But more importantly, the system component offers a key advantage: once the slimline element is integrated into the frame construction, it facilitates rainwater drainage even when the window is tilted, reducing moss formation on the seals.
BUG Triangle at a glance
The triangle is a system component developed by BUG for both functional and aesthetic purposes. All details at a glance:
- Permanently integrated insert element at the sash frame corner
- Connects straight and sloped profiles
- Sloped profile contour promotes water drainage and reduces water retention
- System solution with uniform delivery time
- Numerous architectural solutions possible by combining straight and sloped profiles
- BUG Triangle is serially applicable for all sash depths
- Suitable for all glazing variants
The following videos show the impact of the BUG Triangle on window water drainage.
Benefits of the BUG Triangle system element
No standing water with bevelled profile (promotes water runoff)
Technical features
Uw up to 0.67
- angular
- inclined
- Flush system
- Recessed system
- RAL according to card
- Welded corner connectors for lasting corrosion protection (no visible joins)
Exclusive design with BUG Triangle
The BUG Triangle system element is characterised by a clear language of form combined with high functionality. The combination of angular and inclined or rounded profile systems creates a unique look
New system component enhances facade with an attractive silhouette
The BUG Triangle component can be used not only at the bottom edge but also on the sides and top edge of the window frame, creating a new architectural window silhouette – tailored to your design preferences. Be adventurous when designing your window frame and take advantage of the diverse combination options of the BUG Triangle with many design variants of the wood-aluminium window systems.
BUG Triangle suits both flush-mounted and offset windows
The window frame element is suitable for all glazing variants and is specifically available for the sash and frame profiles of the recessed version (BUG Design 2000 series) and the flush version (BUG Design 5000 series)
Installation of the Triangle system component
Whether in planning, window construction or assembly – the Triangle window element is the ideal solution for all scenarios. After processing, the result is an all-round identical structure for aluminium system profiles, which is quick and easy to handle for window manufacturers. Do you have any questions? Our window experts would be happy to help you.
The most important questions about the BUG Triangle system component
The BUG Triangle system element is a new type of aluminium component – a profile in a rounded triangle shape – which is installed with the angular profile system of the window. Due to the variable combination of the Triangle element, it can be used on all sides of the window profile. This opens up countless design possibilities for an attractive facade silhouette.
The sash profile, bevelled by the BUG Triangle, supports the drainage of rainwater – even when the window is tilted. This prevents water from accumulating and from penetrating to the inside when the sash is opened. Dirt is also prevented and window maintenance is made considerably easier. In this way, the BUG Triangle also supports window water drainage.
BUG – Evolving over time, consistent in quality
At BUG, we place great importance on ensuring that our systems are consistent and certified. This provides not only a technical advantage, but also a durability that runs through our entire brand philosophy. In addition, all our wood-aluminium window systems are developed and produced in the premium “Made in Germany” quality. Get a comprehensive overview of all our wood-aluminium systems or be inspired by our interesting references. Exciting structures with modern facades impress with their striking aesthetics.
