Window sill bracket HS 500 K Item Number: 40009453
The HS 500 bracket system is suitable for brick, plaster and ETICS facades and offers various window sill brackets for different…
View product description
View product description
Selection number | 201856 000 99 |
Width | 35 mm |
Height Drip Edge | 30 mm |
Adjustable from - to | 155 - 205 mm |
Material Thickness | 1.6 mm |
Matching products

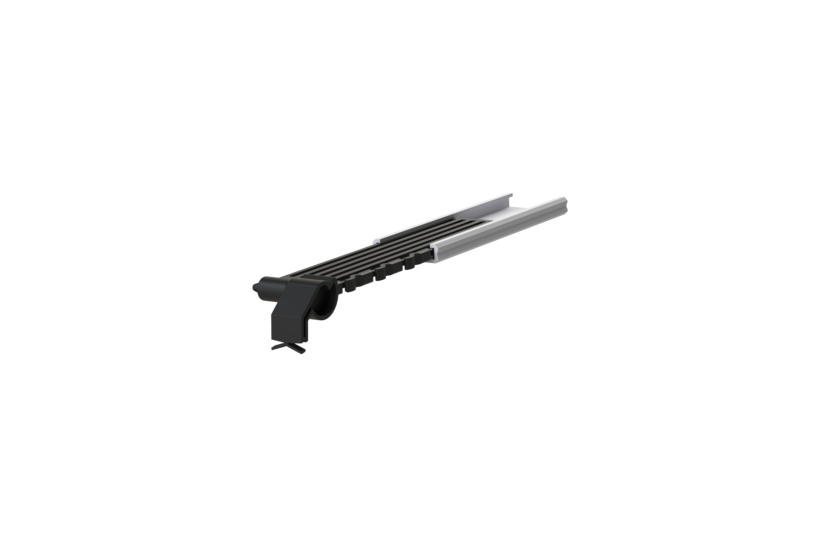

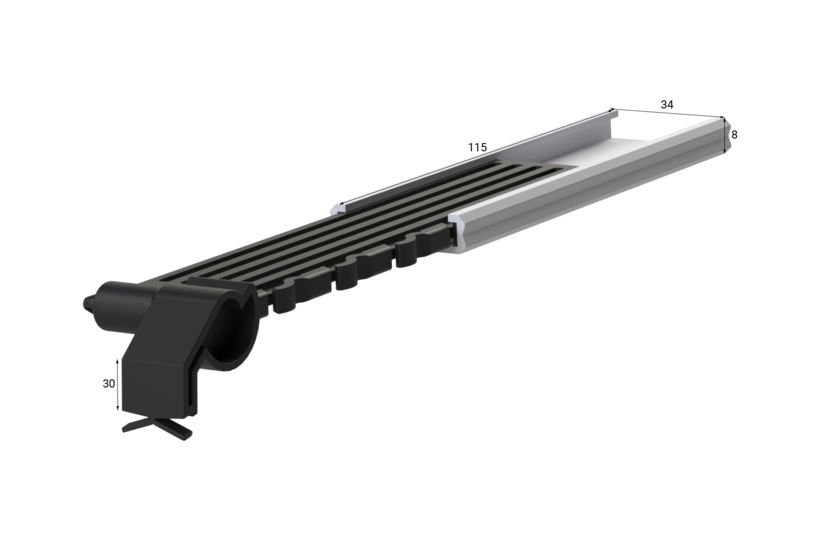

The HS 500 bracket system is suitable for brick, plaster and ETICS facades and offers various window sill brackets for different applications. The HS 500 K window sill bracket has a continuously adjustable slide-in element with a clip articulated head. Flexibly adjustable bracket system for on-site adjustment on the building. This holder is used for brick and exposed concrete facades. The system stabilises the window sill and keeps it in place. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: special plastic and aluminium with a material thickness of 1.6 mm.
Similar products
Product safety regulation
Country of manufacture
Germany
Germany
