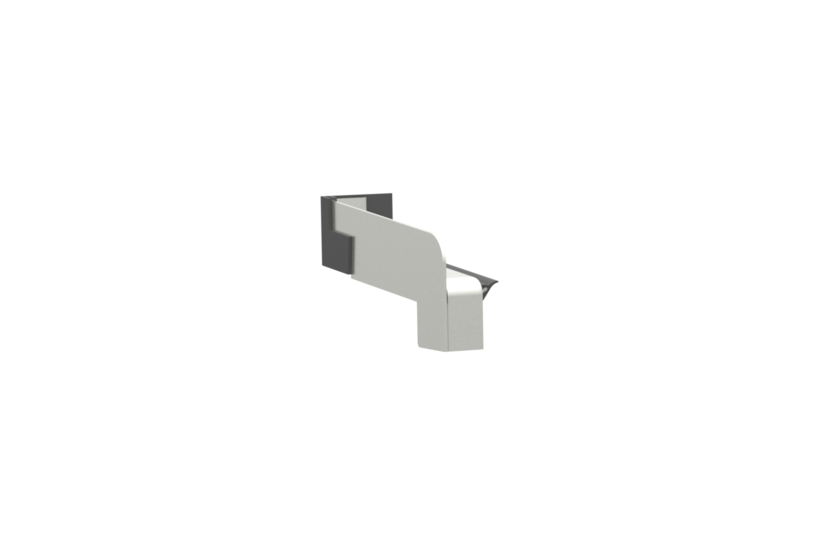

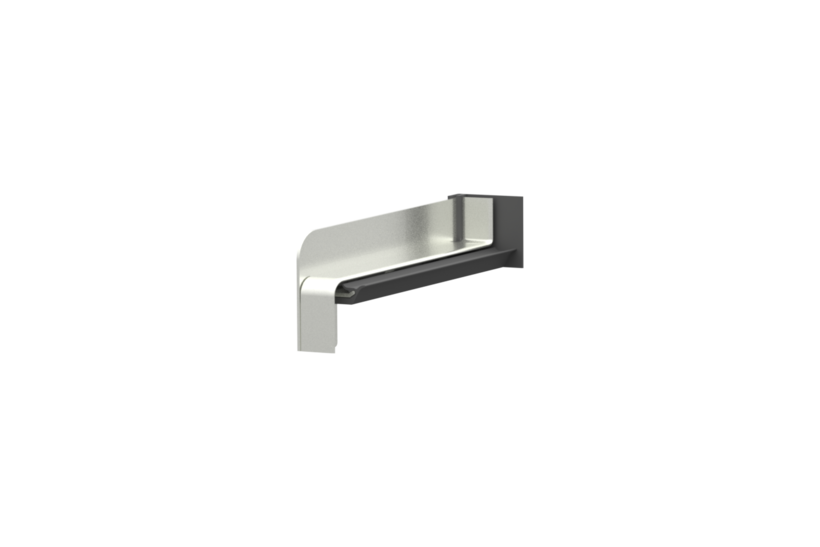

Sliding clinker end piece A 830 GK Item Number: 40010562
| Selection number | 830110 601 01 |
| Length | 25 mm |
| Width | 110 mm |
| Height | 62 mm |
| Projection | 110 mm |
| Height Drip Edge | 30 mm |
| Height Screw Plate | 25 mm |
| deduction measurement | 9 mm |
| Orientation | Left |
| Hardness level | T4 |
| Color | E6 / EV1 |
| Packaging Unit | 30 Stk |
Matching products
Safe and simple installation
Special spring technology holds and centres the clinker end piece
Tested for water tightness under heavy rain at 1,050 Pa by ift Rosenheim
(with plaster edge profile at 1,950 Pa)
Enhanced sliding function accommodates changes in length due to thermal expansion
High quality ensured through the use of EPDM
No dirt traps due to closed design
Numerous installation options
Custom colour options for component parts
