Butt connector H 500 D Item Number: 40000807

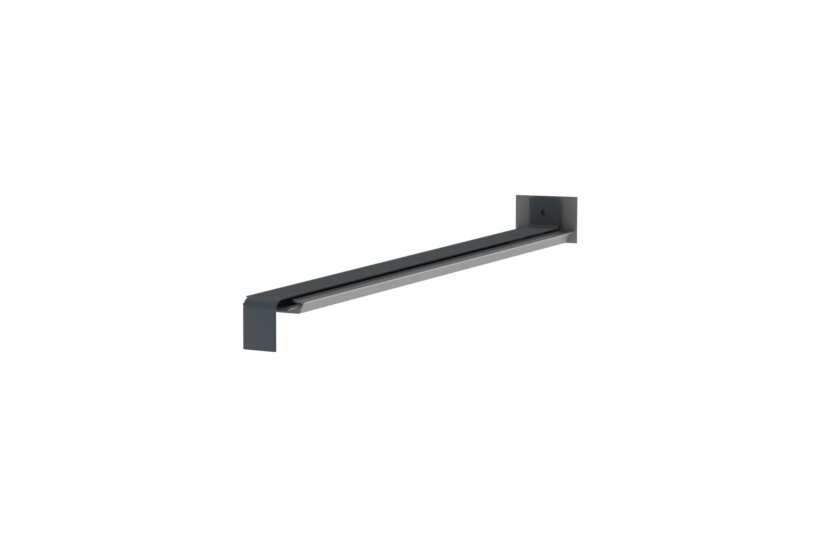

H 500 D butt connector for secure connection of window sill butts. Water tightness under heavy rain tested up to 1,950…
View product description
View product description
| Selection number | 203171 777 01 |
| Length | 25 mm |
| Width | 310 mm |
| Height | 52 mm |
| Projection | 310 mm |
| Height Drip Edge | 30 mm |
| Height Screw Plate | 25 mm |
| deduction measurement | 4 mm |
| plaster edge | 25 mm |
| Seal | Yes |
| Color | RAL 7016 |
| Highly weather resistant | Yes |
| Packaging Unit | 10 Stk |
Matching products
H 500 D butt connector for secure connection of window sill butts. Water tightness under heavy rain tested up to 1,950 Pa. Compensation of thermal length variation +3 mm/-3 mm. With a spring-based design, expansion compensation is +4 mm/-4 mm. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: aluminium and corner-vulcanised EPDM seal.
Note: Expansion compensation is via a compensating spring effect with an integrated zero position. This defined compensation allows movement and expansion during temperature fluctuations on both sides of the window sill.
Downloads
Broschure: Window sill Standard and accessories
en
pdf | 3 MB
Prüfzeugnis: Klinkerabschluss A 150 und Stoßverbinder H 500 D
de
pdf | 257 KB
Prüfzeugnis: Gleitabschluss A 500 V mit Anschraubdichtung AD 500 und Stoßverbinder H 500 D
de
pdf | 122 KB
Prüfzeugnis: Stoßverbinder H 500 D
de
pdf | 172 KB
Prüfzeugnis: Stoßverbinder H 500 D mit Putzüberstand
de
pdf | 212 KB
