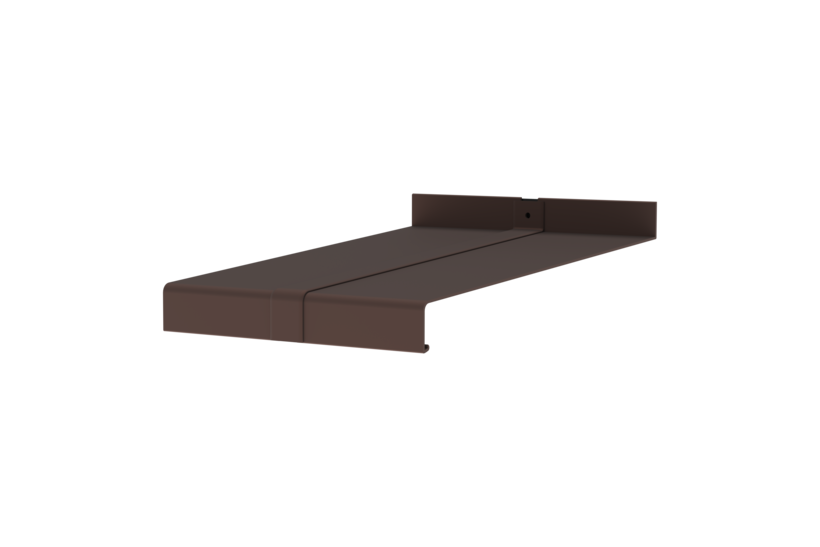

Butt connector H 500 D Item Number: 40000800

H 500 D butt connector for secure connection of window sill butts. Water tightness under heavy rain tested up to 1,950…
View product description

Selection number	203167 817 01
Length	25 mm
Width	270 mm
Height	52 mm
Projection	270 mm
Height Drip Edge	30 mm
Height Screw Plate	25 mm
deduction measurement	4 mm
plaster edge	25 mm
Seal	Yes
Color	RAL 8017
Highly weather resistant	Yes
Packaging Unit	10 Stk

Matching products

Window sill Standard

H 500 D butt connector for secure connection of window sill butts. Water tightness under heavy rain tested up to 1,950 Pa. Compensation of thermal length variation +3 mm/-3 mm. With a spring-based design, expansion compensation is +4 mm/-4 mm. Component of the BUG System 500 window sill system tested for water tightness under heavy rain. Material: aluminium and corner-vulcanised EPDM seal.

Note: Expansion compensation is via a compensating spring effect with an integrated zero position. This defined compensation allows movement and expansion during temperature fluctuations on both sides of the window sill.
